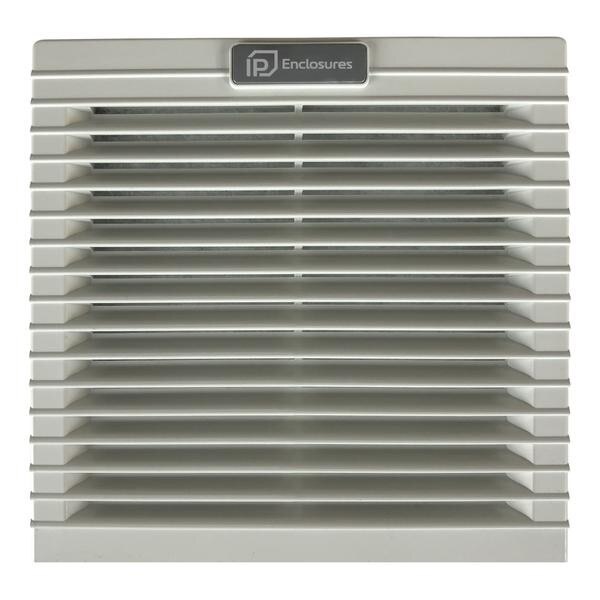

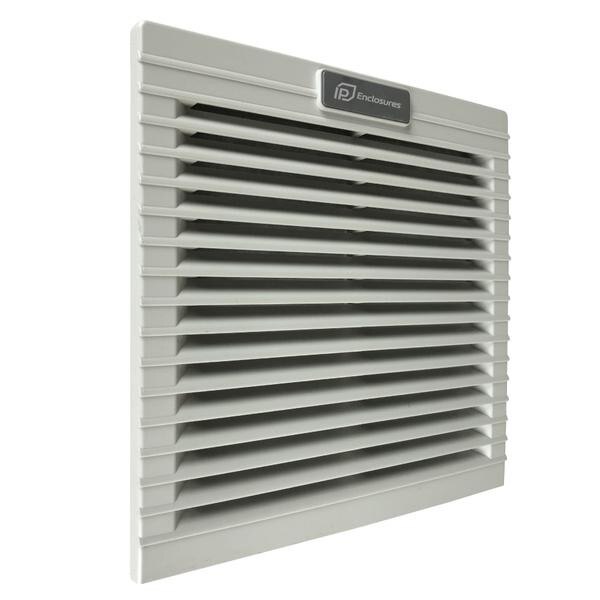

Filter Fan 204 x 204 115m3/hr 230V
High quality Italian filter fan unit for electrical enclosures.

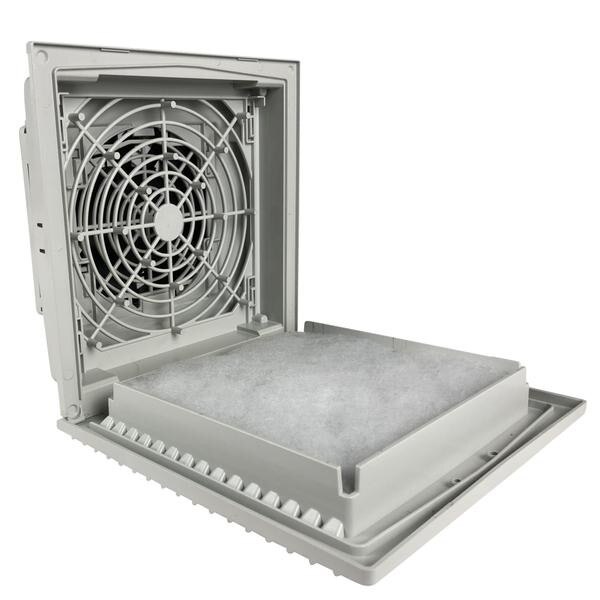

G3 Filter Mat Included.
| Features | Unit | IP-V3200 |
|---|
| Air flow rate (free blow) | m³/h | 115 (125) | | Flow rate with exit filter | m³/h | 84 (97) | | Power supply | V/Hz | 230 / 50-60 | | Dimensions HxLxP | mm | 204x204x104 | | Power consumption | W | 22 (21) | | Current consumption | A | 0.14 (0.12) | | Overcurrent consumption | – | impedance | | Electric connection | – | 3-poles spring terminals | | Duty cycle | – | 100% | | Operating temperature | °C | – 10 / +70 (+14 / +158) | | Protection degree/class | – | IP54/Class I | | Noise level | dB(A) | 43 (49) | | Flow direction | – | reversible: default factory setting outside-in | | Bearing | – | ball | | Filter mat (Eurovent) | – | G3 | | Service life (at 40°C) | hr | 50 000 | | Material | – | ABS UL94V-0 Color RAL7035 | | Wall thickness | mm | 1.2-2.4 | | Gasket | – | foam seal gasket | | Weight (with packaging) | kg | 0.98 (1.18) | | Package dimensions | mm | 220x220x110 | | Montaggio | – | fast clip-on | | Cut-Out dimensions | mm | 177×177 | | Conformity/Approvals | – | CE |
|
|---|
